What do I do if the robot drops the brush disc?

Re-install the brush disc using the manual procedure below.

1

Power on the machine and switch to Manual Mode.

2

Run a manual floor-scrub task — this lowers the brush disc to the ground.

3

Open the side panel, align the component with the mounting holes, and install it.

4

End the task — the brush disc will lift automatically.

5

Inspect to confirm the component is properly seated.

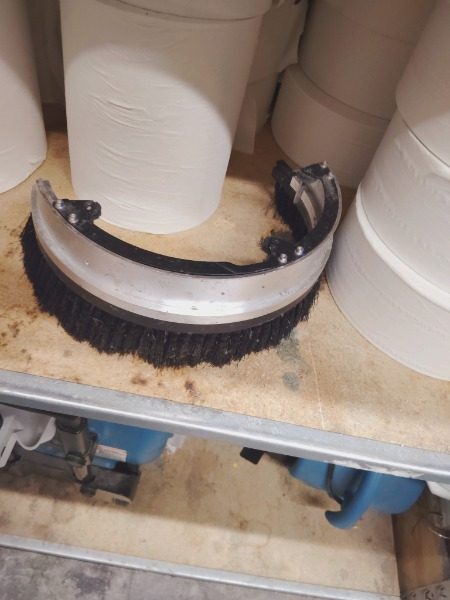

Align and install the brush disc component
